| 出品公司: | Invitrogen |
|---|---|
| 载体名称: | pcDNA4/myc-His A |
| 质粒类型: | 哺乳动物表达载体；cDNA表达载体 |
| 高拷贝/低拷贝: | 高拷贝 |
| 克隆方法: | 多克隆位点，限制性内切酶 |
| 启动子: | CMV |
| 载体大小: | 5075 bp |
| 5' 测序引物及序列: | T7 Forward: 5’-TAATACGACTCACTATAGGG-3’ |
| 3' 测序引物及序列: | BGH Reverse: 5-TAGAAGGCACAGTCGAGG-3 |
| 载体标签: | His Tag (C-端）, c-Myc Epitope Tag（C-端） |
| 载体抗性: | 氨苄青霉素 |
| 筛选标记: | Zeocin |
| 克隆菌株: | TOP10F´, DH5a, JM109, TOP10 |
| 宿主细胞（系）: | 常规细胞系，如293、Hela等 |
| 备注: |
pcDNA4/myc-His A 载体是哺乳动物表达载体，适用于cDNA的表达与克隆； CMV启动子驱动目的基因的高水平表达； pcDNA4/myc-His A,B,C的 区别仅在于多克隆位点处； |
| 产品目录号: | V863-20 |
| 稳定性: | 瞬表达 或 稳表达 |
| 组成型/诱导型: | 组成型 |
| 病毒/非病毒: | 非病毒 |
买家导航
pcDNA4/myc-His A载体质粒基本信息
pcDNA4/myc-His A质粒图谱载体图谱和pcDNA4/myc-His A载体序列质粒序列多克隆位点信息
pcDNA4/myc-His A质粒载体简介
载体描述
pcDNA4/myc-His A, B, and C are 5.1 kb vectors designed for overproduction of recombinant proteins in mammalian cell lines. Features of the vectors allow purification and detection of expressed proteins (see pages 11-12 for more information). High-level stable and transient expression can be carried out in most mammalian cells. The vectors contain the following elements:
Human cytomegalovirus immediate-early (CMV) promoter for high-level expression in a wide range of mammalian cells
Three reading frames to facilitate in-frame cloning with a C-terminal peptide encoding the myc (c-myc) epitope and a polyhistidine (6xHis) metal-binding tag
Zeocin resistance gene for selection of stable cell lines (Mulsant et al., 1988) (see page 14 for more information).
Episomal replication in cell lines that are latently infected with SV40 or that express the SV40 large T antigen (e.g., COS7).
The control plasmid, pcDNA4/myc-His/lacZ is included for use as a positive control for transfection, expression, and detection in the cell line of choice.
实验流程：
Use the following outline to clone and express your gene of interest in pcDNA4/myc-His:

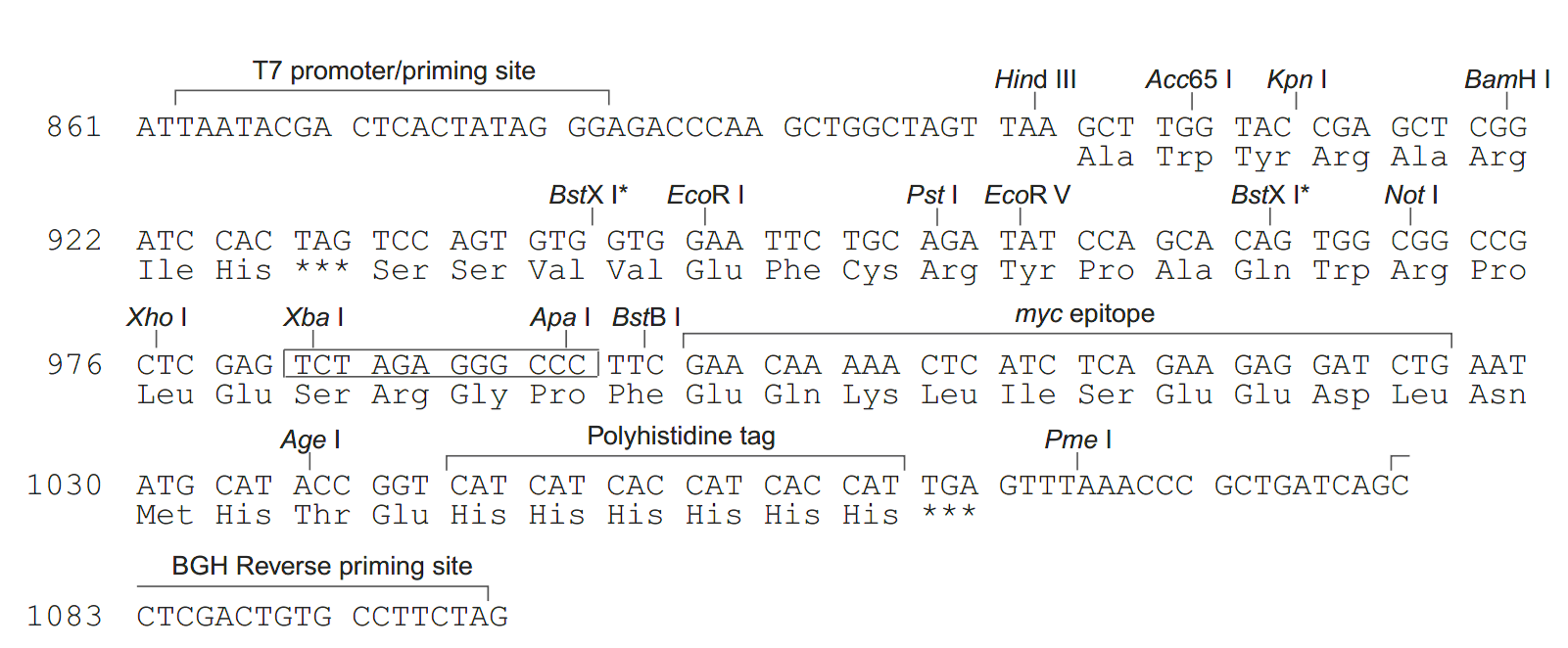

1.Consult the multiple cloning sites described on pages 3-4 to determine which vector (A, B, or C) to use for cloning your gene in frame with the C-terminal myc epitope and the polyhistidine tag.
2.Ligate your insert into the appropriate vector and transform into E. coli. Select transformants on 50 to 100 μg/mL ampicillin or 25 to 50g/mL Zeocin in Low Salt LB. For more information.
3.Analyze your transformants for the presence of insert by restriction digestion.
4.Select a transformant with the correct restriction pattern and use sequencing to confirm that your gene is cloned in-frame with the C-terminal peptide.
5.Transfect your construct into the cell line of choice using your own method of transfection. Generate a stable cell line, if desired.
6.Test for expression of your recombinant gene by western blot analysis or functional assay. For antibodies to the myc epitope or the C-terminal polyhistidine tag.
7.To purify your recombinant protein, you may use metal-chelating resin such as ProBond. ProBond resin is available separately
pcDNA4/myc-His A质粒序列载体序列
LOCUS pcDNA4/myc-His A 5075 bp DNA SYN
DEFINITION pcDNA4/myc-His A
ACCESSION
KEYWORDS
SOURCE
ORGANISM other sequences; artificial sequences; vectors.
FEATURES Location/Qualifiers
source 1..5075
/organism="pcDNA4/myc-His A"
/mol_type="other DNA"
promoter 236..852
/label="CMV_immearly_promoter"
misc_feature 315..602
/label="CAG_enhancer"
misc_feature 769..789
/label="CMV_fwd_primer"
promoter 863..881
/label="T7_promoter"
misc_feature complement(1082..1099)
/label="BGH_rev_primer"
terminator 1085..1312
/label="bGH_PA_terminator"
rep_origin 1375..1681
/label="f1_origin"
misc_feature complement(1795..1815)
/label="pBABE_3_primer"
misc_feature complement(1801..2017)
/label="SV40_enhancer"
promoter 1813..2082
/label="SV40_promoter"
rep_origin 1981..2058
/label="SV40_origin"
misc_feature 2043..2062
/label="SV40pro_F_primer"
promoter 2176..2243
/label="EM7_promoter"
gene 2244..2615
/label="bleo"
/gene="bleo"
misc_feature 2244..2618
/label="sh_ble"
terminator 2751..2870
/label="SV40_PA_terminator"
misc_feature 2839..2858
/label="EBV_rev_primer"
promoter complement(2914..2932)
/label="M13_reverse_primer"
misc_feature complement(2931..2953)
/label="M13_pUC_rev_primer"
promoter complement(2967..2996)
/label="lac_promoter"
rep_origin complement(3305..3924)
/label="pBR322_origin"
gene complement(4079..4939)
/label="Ampicillin"
/gene="Ampicillin"
CDS complement(4079..4939)
/label="ORF frame 2"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
promoter complement(4981..5009)
/label="AmpR_promoter"
/translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGY
IELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVE
YSPVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRL
DRWEPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPL
LRSALPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIA
EIGASLIKHW*"
ORIGIN
1 GACGGATCGG GAGATCTCCC GATCCCCTAT GGTCGACTCT CAGTACAATC TGCTCTGATG
61 CCGCATAGTT AAGCCAGTAT CTGCTCCCTG CTTGTGTGTT GGAGGTCGCT GAGTAGTGCG
121 CGAGCAAAAT TTAAGCTACA ACAAGGCAAG GCTTGACCGA CAATTGCATG AAGAATCTGC
181 TTAGGGTTAG GCGTTTTGCG CTGCTTCGCG ATGTACGGGC CAGATATACG CGTTGACATT
241 GATTATTGAC TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA
301 TGGAGTTCCG CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC
361 CCCGCCCATT GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC
421 ATTGACGTCA ATGGGTGGAC TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT
481 ATCATATGCC AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT
541 ATGCCCAGTA CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA
601 TCGCTATTAC CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG
661 ACTCACGGGG ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC
721 AAAATCAACG GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG
781 GTAGGCGTGT ACGGTGGGAG GTCTATATAA GCAGAGCTCT CTGGCTAACT AGAGAACCCA
841 CTGCTTACTG GCTTATCGAA ATTAATACGA CTCACTATAG GGAGACCCAA GCTGGCTAGT
901 TAAGCTTGGT ACCGAGCTCG GATCCACTAG TCCAGTGTGG TGGAATTCTG CAGATATCCA
961 GCACAGTGGC GGCCGCTCGA GTCTAGAGGG CCCTTCGAAC AAAAACTCAT CTCAGAAGAG
1021 GATCTGAATA TGCATACCGG TCATCATCAC CATCACCATT GAGTTTAAAC CCGCTGATCA
1081 GCCTCGACTG TGCCTTCTAG TTGCCAGCCA TCTGTTGTTT GCCCCTCCCC CGTGCCTTCC
1141 TTGACCCTGG AAGGTGCCAC TCCCACTGTC CTTTCCTAAT AAAATGAGGA AATTGCATCG
1201 CATTGTCTGA GTAGGTGTCA TTCTATTCTG GGGGGTGGGG TGGGGCAGGA CAGCAAGGGG
1261 GAGGATTGGG AAGACAATAG CAGGCATGCT GGGGATGCGG TGGGCTCTAT GGCTTCTGAG
1321 GCGGAAAGAA CCAGCTGGGG CTCTAGGGGG TATCCCCACG CGCCCTGTAG CGGCGCATTA
1381 AGCGCGGCGG GTGTGGTGGT TACGCGCAGC GTGACCGCTA CACTTGCCAG CGCCCTAGCG
1441 CCCGCTCCTT TCGCTTTCTT CCCTTCCTTT CTCGCCACGT TCGCCGGCTT TCCCCGTCAA
1501 GCTCTAAATC GGGGCATCCC TTTAGGGTTC CGATTTAGTG CTTTACGGCA CCTCGACCCC
1561 AAAAAACTTG ATTAGGGTGA TGGTTCACGT AGTGGGCCAT CGCCCTGATA GACGGTTTTT
1621 CGCCCTTTGA CGTTGGAGTC CACGTTCTTT AATAGTGGAC TCTTGTTCCA AACTGGAACA
1681 ACACTCAACC CTATCTCGGT CTATTCTTTT GATTTATAAG GGATTTTGGG GATTTCGGCC
1741 TATTGGTTAA AAAATGAGCT GATTTAACAA AAATTTAACG CGAATTAATT CTGTGGAATG
1801 TGTGTCAGTT AGGGTGTGGA AAGTCCCCAG GCTCCCCAGG CAGGCAGAAG TATGCAAAGC
1861 ATGCATCTCA ATTAGTCAGC AACCAGGTGT GGAAAGTCCC CAGGCTCCCC AGCAGGCAGA
1921 AGTATGCAAA GCATGCATCT CAATTAGTCA GCAACCATAG TCCCGCCCCT AACTCCGCCC
1981 ATCCCGCCCC TAACTCCGCC CAGTTCCGCC CATTCTCCGC CCCATGGCTG ACTAATTTTT
2041 TTTATTTATG CAGAGGCCGA GGCCGCCTCT GCCTCTGAGC TATTCCAGAA GTAGTGAGGA
2101 GGCTTTTTTG GAGGCCTAGG CTTTTGCAAA AAGCTCCCGG GAGCTTGTAT ATCCATTTTC
2161 GGATCTGATC AGCACGTGTT GACAATTAAT CATCGGCATA GTATATCGGC ATAGTATAAT
2221 ACGACAAGGT GAGGAACTAA ACCATGGCCA AGTTGACCAG TGCCGTTCCG GTGCTCACCG
2281 CGCGCGACGT CGCCGGAGCG GTCGAGTTCT GGACCGACCG GCTCGGGTTC TCCCGGGACT
2341 TCGTGGAGGA CGACTTCGCC GGTGTGGTCC GGGACGACGT GACCCTGTTC ATCAGCGCGG
2401 TCCAGGACCA GGTGGTGCCG GACAACACCC TGGCCTGGGT GTGGGTGCGC GGCCTGGACG
2461 AGCTGTACGC CGAGTGGTCG GAGGTCGTGT CCACGAACTT CCGGGACGCC TCCGGGCCGG
2521 CCATGACCGA GATCGGCGAG CAGCCGTGGG GGCGGGAGTT CGCCCTGCGC GACCCGGCCG
2581 GCAACTGCGT GCACTTCGTG GCCGAGGAGC AGGACTGACA CGTGCTACGA GATTTCGATT
2641 CCACCGCCGC CTTCTATGAA AGGTTGGGCT TCGGAATCGT TTTCCGGGAC GCCGGCTGGA
2701 TGATCCTCCA GCGCGGGGAT CTCATGCTGG AGTTCTTCGC CCACCCCAAC TTGTTTATTG
2761 CAGCTTATAA TGGTTACAAA TAAAGCAATA GCATCACAAA TTTCACAAAT AAAGCATTTT
2821 TTTCACTGCA TTCTAGTTGT GGTTTGTCCA AACTCATCAA TGTATCTTAT CATGTCTGTA
2881 TACCGTCGAC CTCTAGCTAG AGCTTGGCGT AATCATGGTC ATAGCTGTTT CCTGTGTGAA
2941 ATTGTTATCC GCTCACAATT CCACACAACA TACGAGCCGG AAGCATAAAG TGTAAAGCCT
3001 GGGGTGCCTA ATGAGTGAGC TAACTCACAT TAATTGCGTT GCGCTCACTG CCCGCTTTCC
3061 AGTCGGGAAA CCTGTCGTGC CAGCTGCATT AATGAATCGG CCAACGCGCG GGGAGAGGCG
3121 GTTTGCGTAT TGGGCGCTCT TCCGCTTCCT CGCTCACTGA CTCGCTGCGC TCGGTCGTTC
3181 GGCTGCGGCG AGCGGTATCA GCTCACTCAA AGGCGGTAAT ACGGTTATCC ACAGAATCAG
3241 GGGATAACGC AGGAAAGAAC ATGTGAGCAA AAGGCCAGCA AAAGGCCAGG AACCGTAAAA
3301 AGGCCGCGTT GCTGGCGTTT TTCCATAGGC TCCGCCCCCC TGACGAGCAT CACAAAAATC
3361 GACGCTCAAG TCAGAGGTGG CGAAACCCGA CAGGACTATA AAGATACCAG GCGTTTCCCC
3421 CTGGAAGCTC CCTCGTGCGC TCTCCTGTTC CGACCCTGCC GCTTACCGGA TACCTGTCCG
3481 CCTTTCTCCC TTCGGGAAGC GTGGCGCTTT CTCAATGCTC ACGCTGTAGG TATCTCAGTT
3541 CGGTGTAGGT CGTTCGCTCC AAGCTGGGCT GTGTGCACGA ACCCCCCGTT CAGCCCGACC
3601 GCTGCGCCTT ATCCGGTAAC TATCGTCTTG AGTCCAACCC GGTAAGACAC GACTTATCGC
3661 CACTGGCAGC AGCCACTGGT AACAGGATTA GCAGAGCGAG GTATGTAGGC GGTGCTACAG
3721 AGTTCTTGAA GTGGTGGCCT AACTACGGCT ACACTAGAAG GACAGTATTT GGTATCTGCG
3781 CTCTGCTGAA GCCAGTTACC TTCGGAAAAA GAGTTGGTAG CTCTTGATCC GGCAAACAAA
3841 CCACCGCTGG TAGCGGTGGT TTTTTTGTTT GCAAGCAGCA GATTACGCGC AGAAAAAAAG
3901 GATCTCAAGA AGATCCTTTG ATCTTTTCTA CGGGGTCTGA CGCTCAGTGG AACGAAAACT
3961 CACGTTAAGG GATTTTGGTC ATGAGATTAT CAAAAAGGAT CTTCACCTAG ATCCTTTTAA
4021 ATTAAAAATG AAGTTTTAAA TCAATCTAAA GTATATATGA GTAAACTTGG TCTGACAGTT
4081 ACCAATGCTT AATCAGTGAG GCACCTATCT CAGCGATCTG TCTATTTCGT TCATCCATAG
4141 TTGCCTGACT CCCCGTCGTG TAGATAACTA CGATACGGGA GGGCTTACCA TCTGGCCCCA
4201 GTGCTGCAAT GATACCGCGA GACCCACGCT CACCGGCTCC AGATTTATCA GCAATAAACC
4261 AGCCAGCCGG AAGGGCCGAG CGCAGAAGTG GTCCTGCAAC TTTATCCGCC TCCATCCAGT
4321 CTATTAATTG TTGCCGGGAA GCTAGAGTAA GTAGTTCGCC AGTTAATAGT TTGCGCAACG
4381 TTGTTGCCAT TGCTACAGGC ATCGTGGTGT CACGCTCGTC GTTTGGTATG GCTTCATTCA
4441 GCTCCGGTTC CCAACGATCA AGGCGAGTTA CATGATCCCC CATGTTGTGC AAAAAAGCGG
4501 TTAGCTCCTT CGGTCCTCCG ATCGTTGTCA GAAGTAAGTT GGCCGCAGTG TTATCACTCA
4561 TGGTTATGGC AGCACTGCAT AATTCTCTTA CTGTCATGCC ATCCGTAAGA TGCTTTTCTG
4621 TGACTGGTGA GTACTCAACC AAGTCATTCT GAGAATAGTG TATGCGGCGA CCGAGTTGCT
4681 CTTGCCCGGC GTCAATACGG GATAATACCG CGCCACATAG CAGAACTTTA AAAGTGCTCA
4741 TCATTGGAAA ACGTTCTTCG GGGCGAAAAC TCTCAAGGAT CTTACCGCTG TTGAGATCCA
4801 GTTCGATGTA ACCCACTCGT GCACCCAACT GATCTTCAGC ATCTTTTACT TTCACCAGCG
4861 TTTCTGGGTG AGCAAAAACA GGAAGGCAAA ATGCCGCAAA AAAGGGAATA AGGGCGACAC
4921 GGAAATGTTG AATACTCATA CTCTTCCTTT TTCAATATTA TTGAAGCATT TATCAGGGTT
4981 ATTGTCTCAT GAGCGGATAC ATATTTGAAT GTATTTAGAA AAATAAACAA ATAGGGGTTC
5041 CGCGCACATT TCCCCGAAAA GTGCCACCTG ACGTC
//
pcDNA4/myc-His A载体图谱质粒图谱pdf版和pcDNA4/myc-His A载体序列质粒序列等相关资料下载
pcDNA4/myc-His A质粒载体应用举例
